Bulldozers Parts in Eugene - A popular type of industrial equipment is a bulldozer. They are most often crawler tractors - that is, they operate on a continuous track, rather than wheels - although they can be wheeled tractors. The dozer blade attaches to the front of the bulldozer to push materials easily and efficiently. Alteration projects and construction sites rely on dozer blades to transport gravel, dirt and other materials. The back end of the bulldozer often has giant metal teeth used to break up hardpacked materials.
Specifics
The track system on a common bulldozer offers phenomenal maneuvering abilities and excellent traction on uneven ground and unstable or rough surfaces. The special transmission components let the machine function with increased traction. The track width evenly distributes the weight in unstable applications to prevent the industrial machine from sinking. There are swamp track options available which are tracks with wider width options. Bulldozers are often utilized in land clearing applications, road construction, mining operations and other jobs that require stable and powerful equipment to transport large volumes of material.
Bulldozers operating on a wheeled system usually have four wheels, moved along by a 4-wheel-drive system and a hydraulic, articulated steering system. The dozer blade is mounted in front of the articulation joint and is operated on a hydraulic system, rather than mechanical.

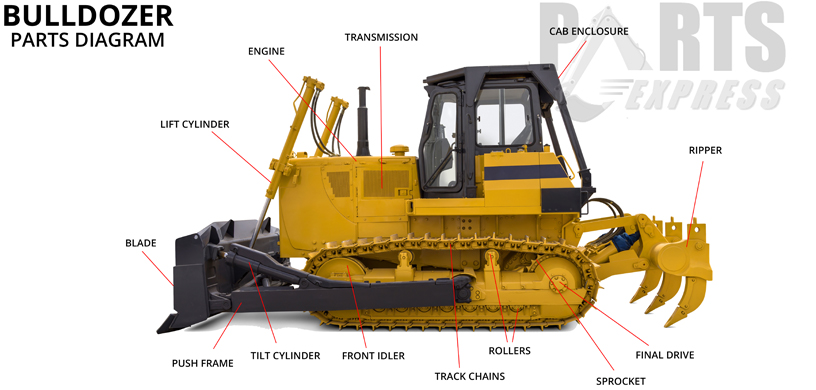

The bulldozer is easily recognized from other types of industrial equipment thanks to its main components, the ripper and the dozer blade.
The Dozer Blade
The bulldozer blade consists of a sizeable metal plate that is situated at the front of the machine. The dozer blade is utilized for pushing heavy materials and items including sand, aggregate and gravel. This could be anything from dirt, rubbish, sand, gravel or even snow. Typically, there are 3 different kinds of dozer blades including the straight blade, the semi-U blade and the universal blade.
The universal blade, or U blade is tall, curved and has large wings on the side used to carry extra material. The straight blade, or S blade, is short, has no lateral curve and no side wings and is also used for fine earth grading. The semi-U or SU blade features a shorter, slightly less curved blade with size wings that are smaller than those on the U blade. It is generally used for pushing boulders or large rock piles.
Usually, the dozer blade attaches to the tractor on an angle or in a horizontal fashion. Dozer blade angles are capable of being adjusted via tilt cylinders. Sharpened dozer blades may be utilized for cutting items including tree roots and stumps. An angledozer features a blade that is pushed ahead on one side to enable items to be cleared out of the path of the bulldozer. The angledozer is commonly used for snow removal on roads and highways.
A variety of bulldozers are equipped with a bull blade. The bull blade refers to a reinforced middle section of the bulldozer. This feature allows the machine to push another heavy piece of equipment known as a scraper for earthmoving applications.
Dozer blades are also used on military vehicles. Many different military vehicles including artillery tractors, combat engineering vehicles and battle tanks utilize dozer blades. The dozer blade helps the battle tank maneuver items and mines to create combat positions or dig shelters. It also helps create a protective barrier against artillery and explosives.
The Dozer Ripper
A dozer ripper is the long, tooth-like tool, known as the shank, on the back of a bulldozer. There are single shank options on dozer rippers or groups with two or more shanks available depending on the application required. The giant ripper design or large single shank is commonly used for large and compact applications. The multi-shank designs are referred to simply as multi-shank rippers.
The tip of the shank is a detachable, metal piece known as the boot. This enables the boot to be easily replaced when it becomes broken or worn down instead of having to completely change the shank.
The dozer ripper breaks up concrete, rock, solid objects and dirt into smaller pieces to facilitate easier bulldozer transport. This allows for quicker project completion.
In agricultural applications, the dozer ripper is used to break up the ground and rocks for planting and plowing. In some areas of Italy and New Zealand, for example, this is especially useful as the nutrient-rich, old lava flows would otherwise not be farmable given their denseness. The top layer of lava rock is loosened up with the ripper to create farmable land.
Bulldozer Adaptations
Adaptations to the bulldozer over the years have enabled it to become useful for numerous applications.
The initial bulldozer design was too big to work in confined locations such as mines. This limitation lead to the creation of a smaller bulldozer design which allowed for maneuvering in tight spaces. Smaller, light bulldozer models are commonly called calfdozers.
In snow areas, such as ski hills, a lighter version of the bulldozer is used for snow removal and preparing areas for winter sports.
The loader tractor is another popular adaptation. This was created by replacing the dozer blade with a large bucket, raised and lowered with the use of hydraulic arms. This adapted bulldoze is now often referred to as a Drott, trackscavator or track loader and frequently used in loading rocks, gravel and earth into dump trucks.
A stump buster is one of the less common bulldozer attachments. This attaches to the rear of the bulldozer. It consists of a single spike that protrudes horizontally to split tree stumps up for easier removal. Stump busters are commonly used by bulldozers to clear land. A brush-rake blade is also commonly used with the bulldozer in these situations.
The original bulldozer design is used ground leveling, road carving, deforestation and earthmoving applications. Heavy bulldozers are primarily used to level terrain in preparation for construction. The construction is completed mostly by smaller bulldozers and loader tractors.
Origins
In 1923, the first bulldozer was designed when farmer James Cummings joined forces with a draftsman named J. Earl McLeod. The initial design created was the dozer blade made to plow fields by attaching to an existing tractor. They soon built the first bulldozer and their original prototype can be viewed in Morrowville, Kansas’ city park. Later that year, Cummings and McLeod filed for a US patent on their bulldozer attachment which was granted in January 1925. It was normal for tractors to run on a track system at this time. In fact, it was this earlier version of the tractor, with its superior maneuverability, that contributed to the creation of the armoured tank during World War I.
By 1929, home-made or custom-manufactured attachments began to appear on wheeled and tracked tractors alike. The bulldozer attachment did not gain popularity until the middle of the 1930s. Once hydraulic cylinders were added, sometime before 1940, bulldozers began to grow in popularity and by the 1950s, the term bulldozer referred to the entire machine.
Bulldozers evolved to become stronger and bigger as their demand grew for small and large construction jobs. Eventually, many companies such as John Deere and Caterpillar began to manufactured large tracked and wheeled bulldozers. The manual transmission was replaced over time with automatic transmissions and electric motors and hydraulic cylinders eventually replaced cable winch systems. More effective and accurate control systems were introduced thanks to these upgrades. Nowadays, GPS technology has been added to improve grade control and enhance bulldozing tasks.
Bulldozers began as a tractor attachment for farming applications and have grown to become one of the most useful pieces of equipment for construction, civil engineering, building and maintenance applications, mining operations and military use.
